How We Started

Three Wheelers were always a fascination.  Motorcycles are great, but with two wheels and no protection, there is an element of risk.  It just seemed like there was something that should slot between a two wheel motorcycle and a full-up four wheel car.

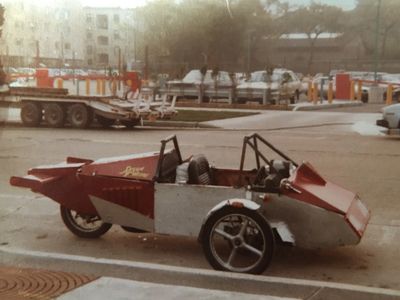

So the 'Dream Weaver' was born at Northwestern University in an Engineering lab.  Driven by a 450cc motor bored to 500cc with nitrous, racing clutches to handle the weight, custom rims turned on a 24" lathe, and serial seating for two.  Street legal and licensed with a top speed of over 110mph.  What fun !    Shown here on the streets of Chicago circa 1985.


What did we learn ?  Too much power to one wheel is really fun for doing tire smoking donuts... but can be dangerous in less than ideal road situations.

To address the problem of too much power to a single rear wheel, the next design we built had front wheel drive (two wheels powered instead of one).  A 3.0 L engine was placed up front, driving the front wheels.  Passengers sat side by side, next to each other.  This pic is approx 1999.


What did we learn?  From this design, we realized that the arrangement felt too much like a four wheel car.  It had doors like a normal car, and you looked over the front wheels and engine like a normal car.  It solved the single wheel drive problem by having front wheel drive, but it begged a very practical question ..   'If it feels like a car, then why only three wheels?'

So then came kids, soccer, and three wheelers fell to the side.  The primary focus was not on three wheelers, but rather figuring out how to get everyone to swim practice.  When my son hit high school I thought ... why not a father/son project.  And why not try a new idea ... keeping the engine in the rear or mid-section, while driving power through two wheels.


And so, the Dragonfly concept was born.  Here is the first 3D printed concept... circa 2012.

The first concept build is based on a gas engine (ICE), which started before there were enough electric components on the market to make it realistic for us.  However, we are really excited about Electric.  Our interest started with thinking about how we could contribute to sustainability, and then the realization that this design was perfect for an EV.  The shapes could provide better aero than a 4 door sedan, and we could get better range with less batteries and weight.  We recognized the need for around town vehicles that were designed for shorter trips to the grocery store or errands, where a huge four door SUV was overkill.  So, in parallel to the ICE, we started working concepts of full 100% Electric.


We have created concept designs and layouts, and have several system components in testing.  We are very excited about these designs.

-- Step by step of ICE (Internal Combustion Engine) build --

Step 1 : Decide on which layout to build first

Step 1 : Decide on which layout to build first

Step 1 : Decide on which layout to build first

. We decided to do a two person, side by side seating.  Good for a driver and a fun partner next to you !

Step 2 : Decide on drive type

Step 1 : Decide on which layout to build first

Step 1 : Decide on which layout to build first

 A shaft drive approach would prove that routing and gearboxes were feasible.  Since electric was not viable when the concept started, we decided to use a gas engine.  Electric will be for our next model ;>)

Step 3: Create 3D Model

Step 1 : Decide on which layout to build first

Step 4 : Source an engine

 Completed by Alex in AutoCAD, the 3D model was a first pass at the mechanical arrangement.  A 3D 'Printed' model was produced.

Step 4 : Source an engine

Step 6 : Select 90 degree gearboxes

Step 4 : Source an engine

 To do more details, we needed to obtain the exact engine to be used.  But where to find something we could afford ?  A Honda Civic SI engine from a salvage vehicle became our donor.  But we did need to get it running before pulling it out.

Step 5 : Remove engine

Step 6 : Select 90 degree gearboxes

Step 6 : Select 90 degree gearboxes

  Engine removal required tracing and tagging of related of the electrical and mechanical components.

Step 6 : Select 90 degree gearboxes

Step 6 : Select 90 degree gearboxes

Step 6 : Select 90 degree gearboxes

  Four right angle gear boxes were required.  Unfortunately, for this concept build, we could not afford to have anything made, so we sourced some spiral bevel 1:1 gears with roller bearings.    Chunkier and heavier than production would be, but good and solid for our concept.

Step 7 : Finalize base components

Step 7 : Finalize base components

Step 7 : Finalize base components

  This picture show the basic arrangement of the reverse trike wheels, seats, engine, gearboxes, driveshafts, and gas tank.  With engine and gearboxes selected, weight calculations and arrangement details are finalized.

Step 8 : Start Framing

Step 7 : Finalize base components

Step 7 : Finalize base components

  Would there be enough room ?  What would the seats feel like ?  First framing sets seat and front wheels

Step 9 : Set Front gearboxes

Step 7 : Finalize base components

Step 10 : Strengthen gearbox framing

 Front gearboxes and steering rack is set in framing.

Step 10 : Strengthen gearbox framing

Step 11 : Set Rear Gearbox and Engine

Step 10 : Strengthen gearbox framing

 Front/Rear/Side strengthening of core around gearboxes, steering rack, and anti-roll bar.

Step 11 : Set Rear Gearbox and Engine

Step 11 : Set Rear Gearbox and Engine

Step 11 : Set Rear Gearbox and Engine

 Set location of rear gearboxes and engine. This finalizes shaft lengths, angles, and weighting.

Step 12: Start rear framing

Step 11 : Set Rear Gearbox and Engine

Step 11 : Set Rear Gearbox and Engine

 Rear framing begins.  Gas tank, swing arm must be accommodated.

Step 13: Finalize major rear components

Step 13: Finalize major rear components

Step 13: Finalize major rear components

 Rear Gearbox mounts , Engine Mounts, swing arm mounts fabricated

Step 14 : Fab Rear Swing arm

Step 13: Finalize major rear components

Step 13: Finalize major rear components

 Rear Swing Arm is fabricated

Step 15: First strength test

Step 13: Finalize major rear components

Step 15: First strength test

   450 lb motor and accessory weight testing.

Step 16: Luggage Volume test

Step 16: Luggage Volume test

Step 15: First strength test



 Trunk space for Lawn Chairs and Cooler check.  Must have for a fun vehicle !

Note location setting for air suspension compressors and tank.

Step 17: Fab Driveshafts

Step 16: Luggage Volume test

Step 17: Fab Driveshafts

    Six driveshafts (3 each side), with CV joints to accommodate motor vibration damping and wheel travel.  In production, these would be shorter/longer versions of what is in your car today.

Step 18 : Fab Exhaust

Step 16: Luggage Volume test

Step 17: Fab Driveshafts

   Exhaust with stainless mesh sections for vibration damping, muffler, and Cat  to keep clean air :>)

Step 19: Major Components Complete

Step 19: Major Components Complete

Step 19: Major Components Complete

    Last picture of open framing with major components.  Sheet metal to complete drivers cabin begins.

Step 20 : First roll

Step 19: Major Components Complete

Step 19: Major Components Complete

  Would there be enough room ?  What would the seats feel like ?  First framing sets seat and front wheels

Step 21 : First Fans

Step 19: Major Components Complete

Step 22: Bottoms Up !

 Front gearboxes and steering rack is set in framing.

Step 22: Bottoms Up !

Step 23: Engine Install

Step 22: Bottoms Up !

 With raw chassis complete, major components are removed, and chassis is flipped for bottom work.  Once completed, frame will be painted and sealed on bottom before returning upright.

Step 23: Engine Install

Step 23: Engine Install

Step 23: Engine Install

 Bottom of chassis is completed, and flipped upright.  Major components will begin final install.  Here, engine goes in for final install.

Step 24: Show Prep

Step 23: Engine Install

Step 23: Engine Install

 A fan suggests appearing at car show.   Idea of showing chassis is interesting to many.  Decision made, chassis components are installed and prepped for show.  With only 4 weeks to complete, feels like TV show build.

Step 25 : First public appearance

Step 25 : First public appearance

Step 25 : First public appearance

 2017 Car show.  Lots of interest and great people.   Thanks to everyone who talked to us, and all the positive energy and comments.

Step 26 : Fan feedback

Step 25 : First public appearance

Step 25 : First public appearance

 After listening to the fans, we decided to alter the body style slightly, and create dual intakes with roll bars, instead of the original F1 style intake.

Step 27: Grilling

Step 28: More Fans

Step 28: More Fans

 Exhaust system coatings require heat treatment.  Grill is re-purposed.

Step 28: More Fans

Step 28: More Fans

Step 28: More Fans

  With exhaust finalized, new radiators and sizing can be determined.   Note that pivoting steering is in place

Step 29: Mock up body options

Step 30: Body style finalized, start sheet metal templates

Step 30: Body style finalized, start sheet metal templates

   Lots of fun creating different body styles, headlight locations, and windshield sizes.    Many options, some really crazy.

Step 30: Body style finalized, start sheet metal templates

Step 30: Body style finalized, start sheet metal templates

Step 30: Body style finalized, start sheet metal templates

 Wood templates give a real life feel to body.  Sheet metal fabrication begins.

Stacking Up

Step 31: Front Canopy Lift

Step 31: Front Canopy Lift

 Friend's 1987 Electric Porsche conversion.  Next Dragonfly version will be electric example.  Starting sketches now anticipating the future :>)

Step 31: Front Canopy Lift

Step 31: Front Canopy Lift

Step 31: Front Canopy Lift

 One of two series based linear linear actuators for Canopy lift.  Wireless and control unit show on inset.

Step 32: Cold Air Intake

Step 33: Body style finalized, start sheet metal templates

Step 33: Body style finalized, start sheet metal templates

       Routing of Air Intake to Side Air Scoop (note CSF Radiator in wheel well)

Step 33: Body style finalized, start sheet metal templates

Step 33: Body style finalized, start sheet metal templates

Step 33: Body style finalized, start sheet metal templates

 Wood templates give a real life feel to body.  Sheet metal fabrication begins.

Step 34: Rear Panel

Step 35: Side Vent Space Check

Step 35: Side Vent Space Check

 Exhaust system coatings require heat treatment.  Grill is re-purposed.

Step 35: Side Vent Space Check

Step 35: Side Vent Space Check

Step 35: Side Vent Space Check

 Quick cardboard verification that rear canopy will open/close .   Canopy moves backward before raising up.  This provides necessary clearance.

Fan Check

Step 36: Front Canopy Sheet Metal

Step 36: Front Canopy Sheet Metal

     Lamborghini Lee voices approval.   Front canopy lifts and controls are in place (silver pieces).   With basic mechanicals complete, front sheet metal can begin.

Step 36: Front Canopy Sheet Metal

Step 36: Front Canopy Sheet Metal

Step 36: Front Canopy Sheet Metal

   Sheet metal for front end starts coming together.  Starting to look like a real three wheel car !

Step 37: Center console, dash, and venting

Step 37: Center console, dash, and venting

Step 37: Center console, dash, and venting

Dragonfly Autocycle center console

 All steel center console and dash clusters.  Steel is extra work, but adds to centerline strength of vehicle.

Step 38: Wiring

Step 37: Center console, dash, and venting

Step 37: Center console, dash, and venting

Dragonfly Three Wheel car wiring

Lots of wiring and system control units are hidden in the body.  This view is under the front console.  You can see the Power Steering control unit (yes, she has power steering), the CAN Bus Intefaces, the Lift Controls, and a whole host of critical wiring.  This step is very complex.  The multimeter is close by to check each piece.     !

Step 39: Engine Start - System is Hot!!

Intellitronix Guages

Starting the engine for the first time is always an exciting milestone!!  Gas and fluids are now in the system, and all the the supporting electronics are fully functional.


These are Intellitronix Guages. They are interfaced to and fed directly from the CAN system.

Thanks to our sponsors

CSF Cooling

Air Lift Performance

Air Lift Performance

    Thanks to sponsorships from CSF Cooling!    Side radiators, small size, performance cooling...  who can meet our specialized needs ?  Well, meet CSF Racing and High Performance.   CSF Radiators | Ultimate Performance Cooling (csfrace.com) They had THE goods, and were generous enough to support our efforts.  We are using two CSF All-Aluminum High Performance King Cooler (#7065), one on each side.   Very nice!

Air Lift Performance

Air Lift Performance

Air Lift Performance

 When we made the first Dragonfly design, we needed to select an air system for design detailing.  Unfortunately, that was many years ago and the old K-Sport control system had no ride height control and was slowly failing.  Searching for a replacement that could support our radical needs,  AIR LIFT has graciously agreed to help sponsor our endeavors.  Their new systems are really slick.  Check out AIRLIFT at https://www.airliftperformance.com/  . More to come as we set up the system.

Intellitronix

 The dash and gauges are all custom, so we needed a system that could be easily adapted to these needs.  Intellitronix has a complete line that can adjusted to pretty much anything.  We are looking forward to designing the dash with Intellitronix guages (link:  Intellitronix Gauges ).  The Multi-Gauge LED Bargraph Set  – B9999 - will be used, along with the GPS sender .   Looking forward to it !
